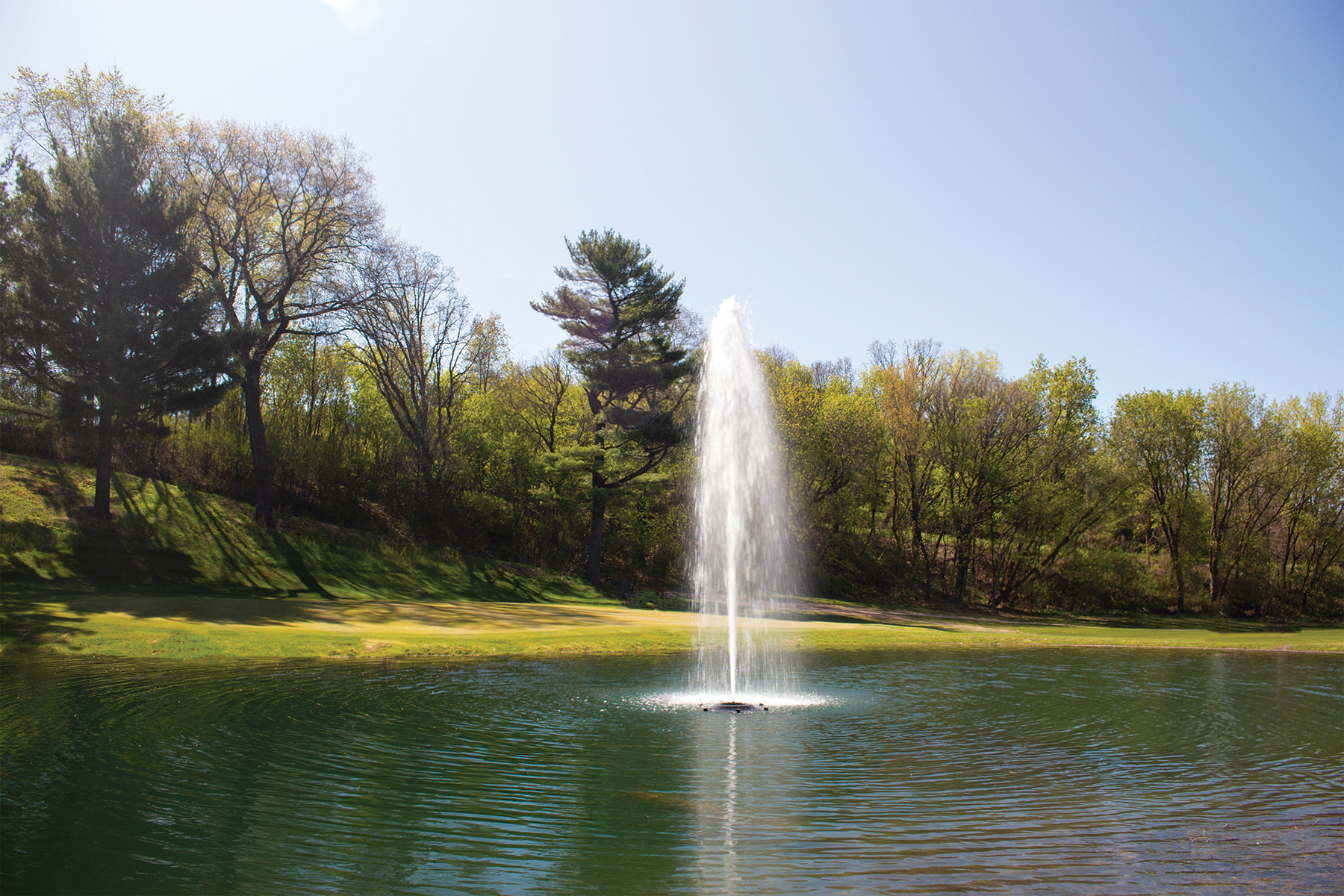

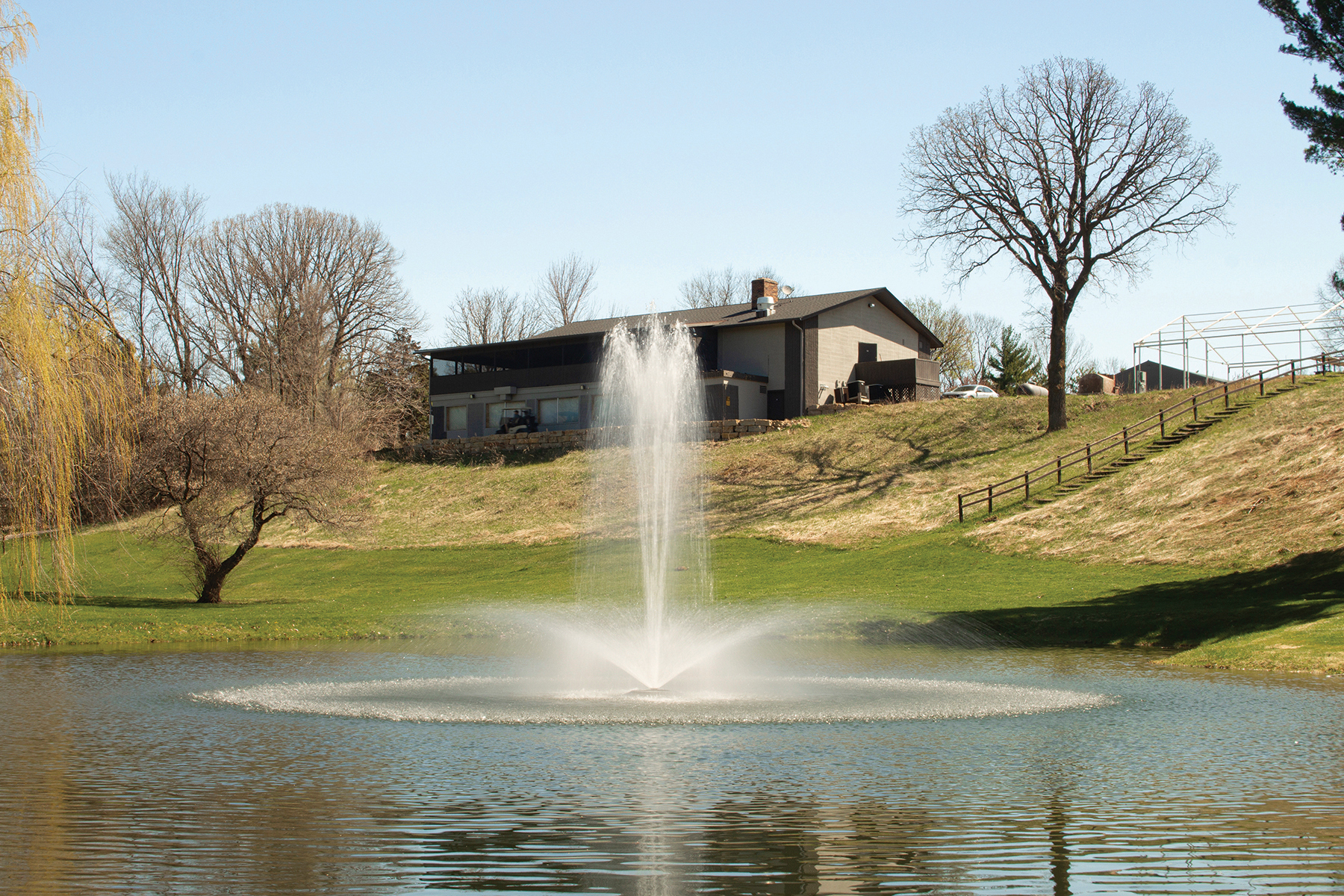

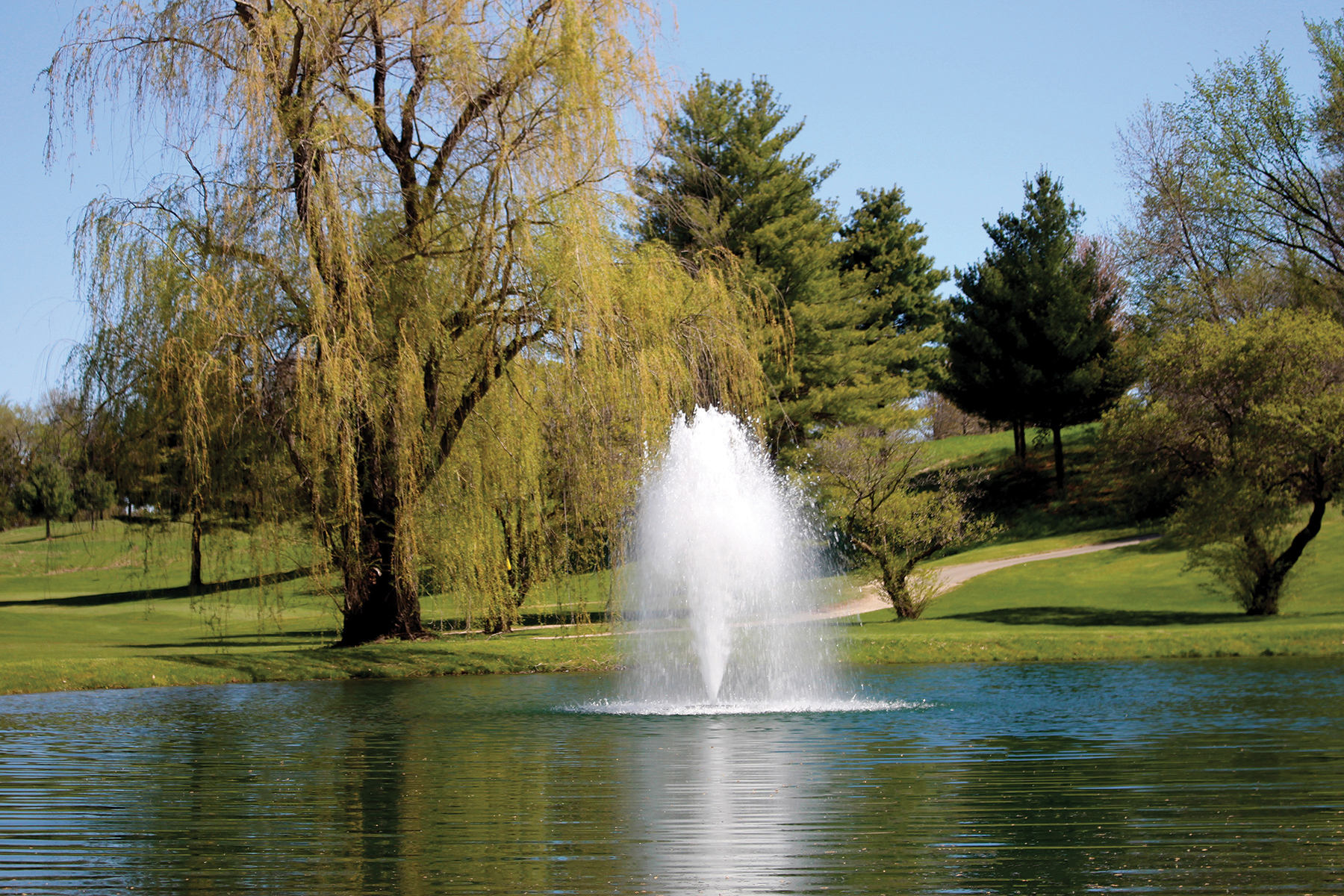

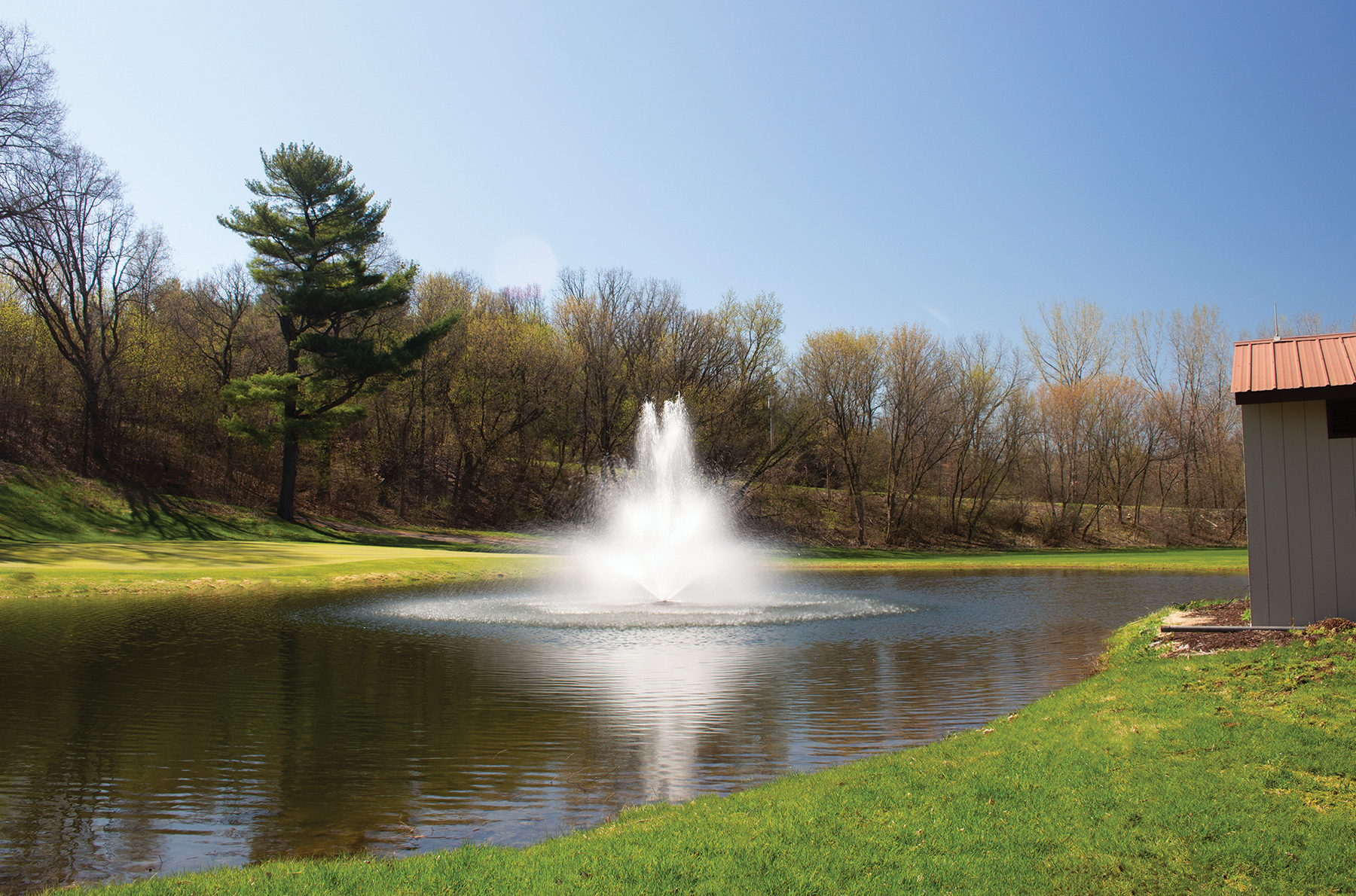

This 3 HP, single-phase floating fountain is designed not just to aerate your pond, but to beautify it with its dynamic water display. Available in a 120V, 60Hz model, the 3.1JF model comes equipped with five interchangeable nozzles, and the ability to be operated without a nozzle, allowing you to switch between six distinct fountain patterns at no extra cost. These patterns can soar up to 27 feet in height and spread upto a 38-foot diameter, transforming your pond into a captivating water spectacle.

• Multiple Patterns in One Unit: Custom-configure the unit to match your exact project needs and personal tastes.
• Efficient / Low Power Use: Designed for highest efficiency with low power consumption compared to competing units. Reduces operating costs over the unit's lifespan. Operates at 13.4 running amps on a 208/240V, single-phase circuit for low operating costs.
• Clog Resistant: Features a unique water-deflecting nozzle design, making it the most clog-resistant model on the market. Operates successfully in shallow water as little as 24 inches.
• Rugged Motor: Environmentally friendly design includes a hard-face internal mechanical seal and an external lip seal for leak protection. Seals are made of silicone carbide for longevity. Equipped with long-life top and bottom ball bearings. Flood oil lubricated for excellent heat dissipation.
• Corrosion Resistant: Offers superior dependability in salt-water or other corrosive environments. All external metal motor, float, and hardware components are made of stainless steel and protected by a sacrificial zinc anode.
• Low Maintenance: Requires cleaning of the motor housing once or twice per year and replacing the sacrificial zinc anode when visibly corroded.
• Fully Tested: ETL listed to stringent UL and CSA Safety Standards.
• Ships Easily: Ships via UPS in 4 or 5 boxes (add 1 box for lights).
• Dependable: Backed by a 3-year warranty with optional 5-year extended warranty options available.
• Choice of Cord Lengths: Offers SJTOW or SOOW underwater-rated power cord length options of 50', 100′, 150′, 200′, 250′, 300′, or 400′ (500′ special order). Includes three 50′ braided nylon mooring ropes.
• Optional Light Kits: Easily add and install optional light kits to enhance the display during nighttime hours.
• Made in the U.S.A.
• FREE SHIPPING WHEN ORDERED ONLINE

Complete Package Includes:

• Fountain unit
• 5 Interchangeable nozzles
• Float kit
• Bottom screen
• Power cord (length available up to 500 ft)
• Mooring ropes
• GFCB protected C-95 control panel with timer


  The panel includes a timer for the fountain, timer for the optional light kit, Class A Human Rated GFCI protection, hard wire terminal block, surge protection, all in a thermoplastic NEMA 3r/4x rated enclosure. Kasco recommends a licensed electrician to install the C-95 control and fountain hook up.


MOTOR UNIT

Specifications:

• 3 HP, 208-240V operating voltage, single phase
• Oil cooled
• Continuous duty rated
• Thermal overload protection
• Series 300 stainless steel can

FLOAT

Specifications:

• UV-resistant polyethylene
• Single-piece float
• Series 300 stainless steel hardware
• Series 300 stainless steel bottom screen
• Three 50’ braided nylon mooring ropes

CONTROL PANEL

Specifications:

• UL 508 Listed
• UL type 3R/4X thermoplastic enclosure
• 30 amp breaker
• Human-rated GFCI protection
• Surge protector
• 24-hour mechanical fountain timer
• Terminal block wiring
• 24-hour mechanical timer for optional lighting
• 4-wire power required (L1, L2, N, G)

Cable Specifications:

• UL, CSA & NEC rated for underwater use
• Total package Listed by ETL to UL/CSA standards

Optional LED Fountain Lighting Package:

Enhance the magic with the optional Kasco Marine 6 fixture LED Light Kit to illuminate your fountain after dark, turning droplets into sparkling lights and providing a luxurious, resort-like feel to your setting. The lighting kit’s transformer is integrated into the system, so there’s no extra wiring required. Simply plug it into the C-95 Control Panel and the lights will operate whenever the unit operates during darkness.

Kasco RGB LED 6 Fixture Colour changing light
