Description

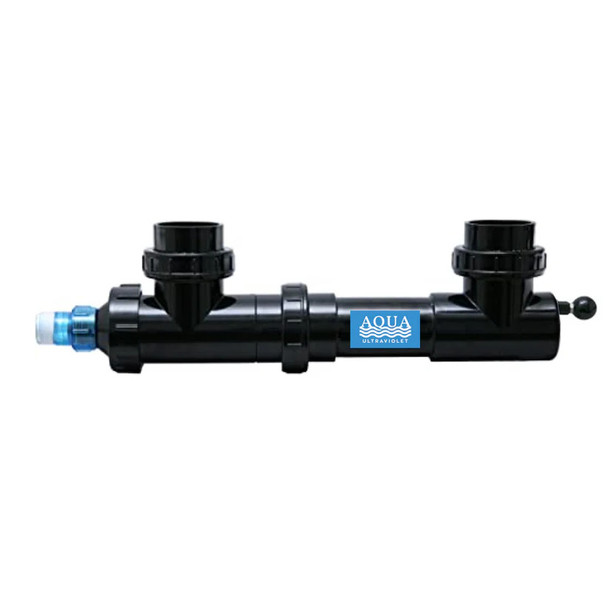

Aqua-UV Twist 25 Watt 2" UV Sterilizer With Wiper for Algae and Bacteria Control
Ultraviolet sterilization is a proven, dependable, and effective method for controlling and eradicating algae spores, bacteria, and protozoa present in the water source. Ultraviolet light alters or disrupts the DNA and RNA of target organisms. By properly implementing an Aqua Ultraviolet disinfection system in-line, the targeted organisms can be eradicated effectively without any harmful residuals.
For over twenty years, Aqua Ultraviolet has manufactured quality drinking water and medical units. We now offer these same high-quality and exceptional internal parts in their patented housings. We believe quality products backed by our superior service combine to ensure customer satisfaction and maximum in-line performance.
Features & Benefits
- Housings come with a lifetime warranty and will not degrade over time from the Ultraviolet light.
- All units are manufactured with only the highest quality components and production standards.
- Patented slimline lamps last an industry high of up to 14 months of continuous operation—no other lamp on the market lasts as long.
- UV lamps have a 99.9% effective kill rate.
- Lamp changes are done easily by our new EZ Twist Cap from one end, with a four-pin connection.
- Quartz sleeves allow the lamps to reach their optimum operating temperature and are made of the finest quality quartz, HL Q200, which allows for a 99.9% transmission rate.
- Transformers are self-starting, thermally protected, and designed for outdoor use.
- Transformers are exactly matched to the lamps for maximum W output.
- Units are designed to allow maximum flow rates to fully utilize your pump.
Specifications
- Dimensions: 20” x 3-3/4” x 6”
- Dimensions with Wiper: 21-7/8” x 3-3/4” x 6”
- Wiper Clearance: 16"
Water Sterilization Measurements
Freshwater: 500 – 1,200 Gallons
Saltwater: 150 Gallons
Recommended Flow Rate for UV Dosages
at 30,000 µw/cm2 (EOL) GPH: 1,200 (Max Flow Rate)
at 45,000 µw/cm2 (EOL) GPH: 800
at 60,000 µw/cm2 (EOL) GPH: 600
at 75,000 µw/cm2 (EOL) GPH: 480
at 90,000 µw/cm2 (EOL) GPH: 400 (Min Flow Rate)
*Aqua Ultraviolet does not recommend utilizing Wipers with Salt Water and if utilized in this manner will void the warranty on the Wiper parts.
How It Works
The ultraviolet light sanitizer emits a germicidal ray which alters or disrupts the DNA or RNA of single-celled organisms. Ultraviolet is a proven ultraviolet water purification system for controlling algae, bacteria, and protozoa.
The UV controls the spread of fish disease, viruses, and other harmful pathogens, as well as keeping your water clear by destroying free-floating algae.
Aqua Ultraviolet’s Light Sanitizers will clear your water in 3 to 5 days, sometimes overnight, and keep it that way.
Performance is guaranteed when sized, installed and operated according to our instructions.
Things to Note:
- Weatherproof but not submersible—must be installed outside of the pond.
- DO NOT USE in combination with high-pressure waterfall pumps.
- Water has to be pumped through the UVC—do not operate on gravity feed.
- 1-year manufacturer's limited warranty (warranty does not cover transformer and UVC bulb).
